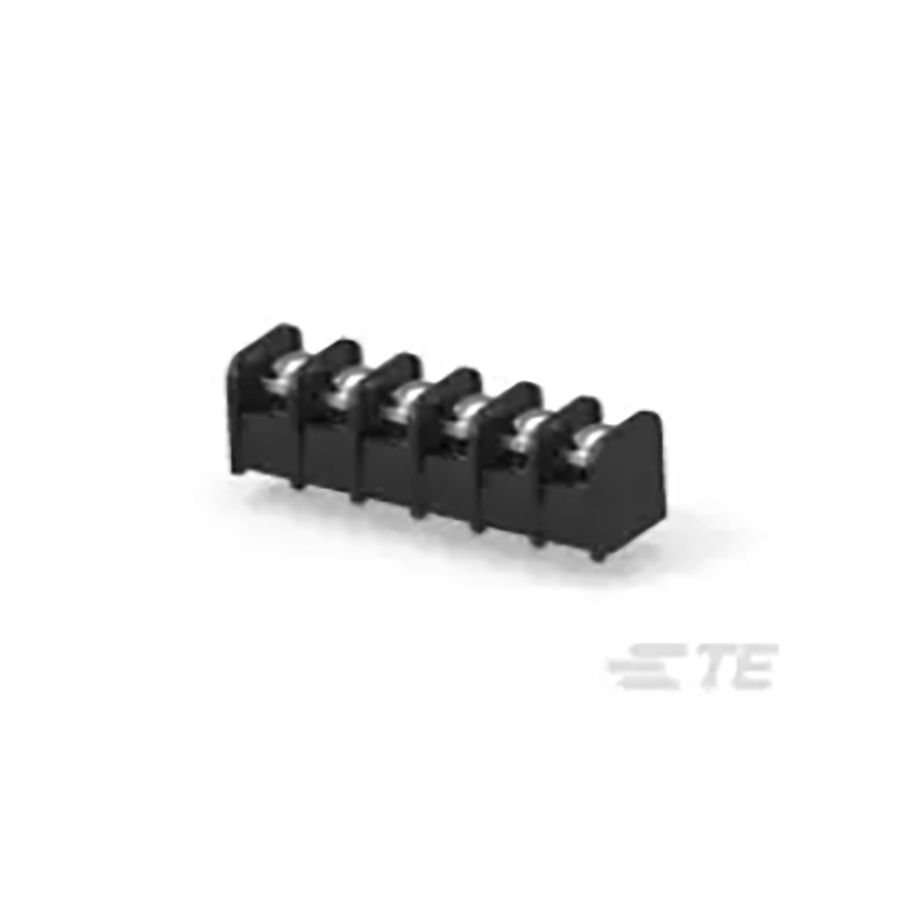

3-1437664-8
Manufacturer:
TE Connectivity
Mfr.Part #:
3-1437664-8
Datasheet:
Description:
Terminal Blocks Through Hole 6 9.53 mm 20 A 300 V 22 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 58.7 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 16 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Steel |
| Pitch | 9.53 mm |
| Current Rating | 20 A |
| Max Current Rating | 20 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Number of Contacts | 6 |
| ELV | Compliant |
| Terminal Material | Steel |
| Number of Poles | 6 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Levels | 1 |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Black |
| Number of Wire Entries | 6 |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 12 AWG |
